Betafpv M02 25-350mW 5.8G VTX

$35.95 (inc. GST)

In StockIn StockOut of stock

CURRENTLY IN STOCK

Out of stock

Order in H, M, Seconds (before 1pm AEST) for same day despatch
Add to Wishlist
SKU: 14951N/A Categories: BetaFPV , FPV Transmitters , Tags: 5.8ghz, BetaFPV, Nano

Are you looking to buy Betafpv M02 25-350mW 5.8G VTX in Australia? Walk into our store at Phaser FPV located in NSW Gosford to see them or buy online today.

M02 VTX, a high-quality 5.8GHz VTX has 4 adjustable power including 25mW, 100mW, 200mW and 350mW. With 350mW output power, pilots can fly drones up to 600 meters away to explore more possibilities and fun. Only weight 1.7g. M02 VTX especially comes with a separate 26.5 * 26.5mm mounting hole, which is more flexible for building more types of drones. It's perfectly suitable for the 3-5 inch drone such as TWIG ET5, X-Knight 4'' FPV, and HX115 HD toothpick quad.

Bullet Point

  • With the 350mW output power, M02 VTX provides a stable image and strong transmission. Pilots can fly drones up to 600 meters away.
  • M02 VTX comes with a separate 26.5*26.5mm mounting hole(needs to be soldered to the VTX), which is more flexible for building more types of drones. For the weight-sensitive drone, you can choose not to use this mounting hole while the single M02 VTX only weight 1.7g.
  • Comes with IPX type of antenna, just plug and play, no extra solder work needed. M02 VTX is more convenient for the install of FC with a 5-pin connector.
  • M02 VTX is perfectly suitable for the 3-5 inch drone, we highly recommend it for TWIG ET5, X-Knight 4'' FPV and HX115 HD toothpick quad.

Specification

  • Item: M02 5.8G VTX
  • Output power: 25/100/200/350mW (adjustable)
  • Supply voltage range: 4.5-5.5V
  • Weight: 1.7g ( Mounting hole 0.7g)
  • VTX internal size: 18X14mm
  • Frequency: 5.8GHz 37 channels, with Raceband: 5645~5945MHz
  • Channel SEL: SmartAudio
  • Modulation type: FM
  • Channel Indicate: 3 LEDs
  • Frequency control: PLL
  • All harmonic: Max -50dBm
  • Frequency stability: ±100KHz (Typ.)
  • Frequency precision: ±200KHz (Typ.)
  • Channel carrier error: ±1.5dB
  • Antenna port: 50 Ω
  • Operating temperature: -10℃~+60℃

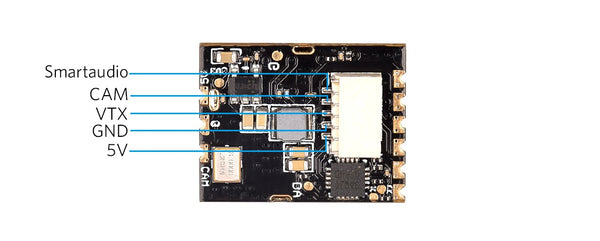

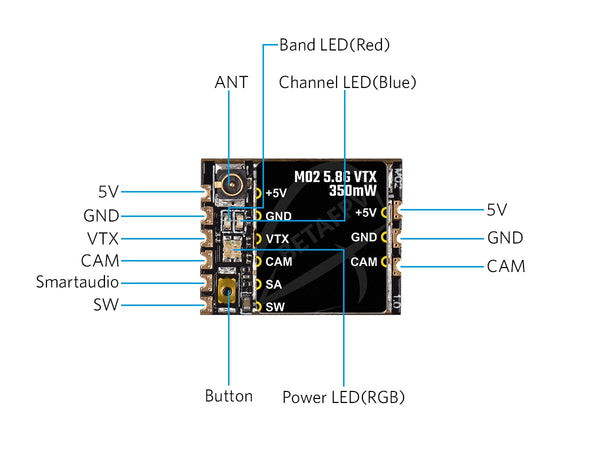

Diagram for M02 VTX

How to Connect with FC

Here is the diagram about how to connect the VTX to Toothpick F4 2-4S AIO Brushless Flight Controller 20A(BLHei_S).

Package

  • 1 * BETAFPV M02 5.8G VTX
  • 1 * 5-Pin FC Cable
  • 1 * ZRC Antenna
  • 3 * M1.4x8mm screws
  • 3 * Anti-vibration rubber dampers
