BetaFPV A01 AIO Camera 5.8G VTX (Wire-Connected Version)

$46.95 (inc. GST)

In StockIn StockOut of stock

CURRENTLY IN STOCK

The A01 AIO Camera combo is perfect for Pro2 Series whoop drone, which is integrated with A01 VTX, 5.8GHz FPV Transmitter, 600TVL FPV Camera and Dipole Whip Antenna. It’s compatible with 5.8G FPV Goggle VR006. With the port to connect with FC and mounting holes to fix on Canopy, convenient for installation.

Note: If you are looking AIO VTX for Pro Series and Brushed Whoop Drone, Please click here to reach out.

FEATURE

  • Micro-sized, lightweight
  • Integrated Camera and 0mW/25mW/200mW adjustable transmitter
  • Support PitMode, power up VTX during race events without interfering
  • Dipole whip high sensitivity antenna. It is mounted to the VTX board durable.
  • With the port to connect with FC and mounting holes to fix on Canopy, convenient for installation
  • Included with SmartAudio function. FC can communicate with the VTX by using the audio line-in, which allows FC to know what frequency the VTX is using, and to change it

      SPECIFICATION

      • Item: A01 Camera AIO VTX
      • VTX: A01 25-200mW 5.8G VTX
      • TVL: 600TVL
      • FOV: H:120°/V:100°
      • Video SystemNTSC/PAL(Switchable)
      • Horizontal Resolution: 640X480 1/4”
      • Output power: 0/25mW/200mW adjustable (Set output power on 0, to avoid frequency interference)
      • Supply Voltage: 5V
      • Size: 28x19x5mm(VTX)

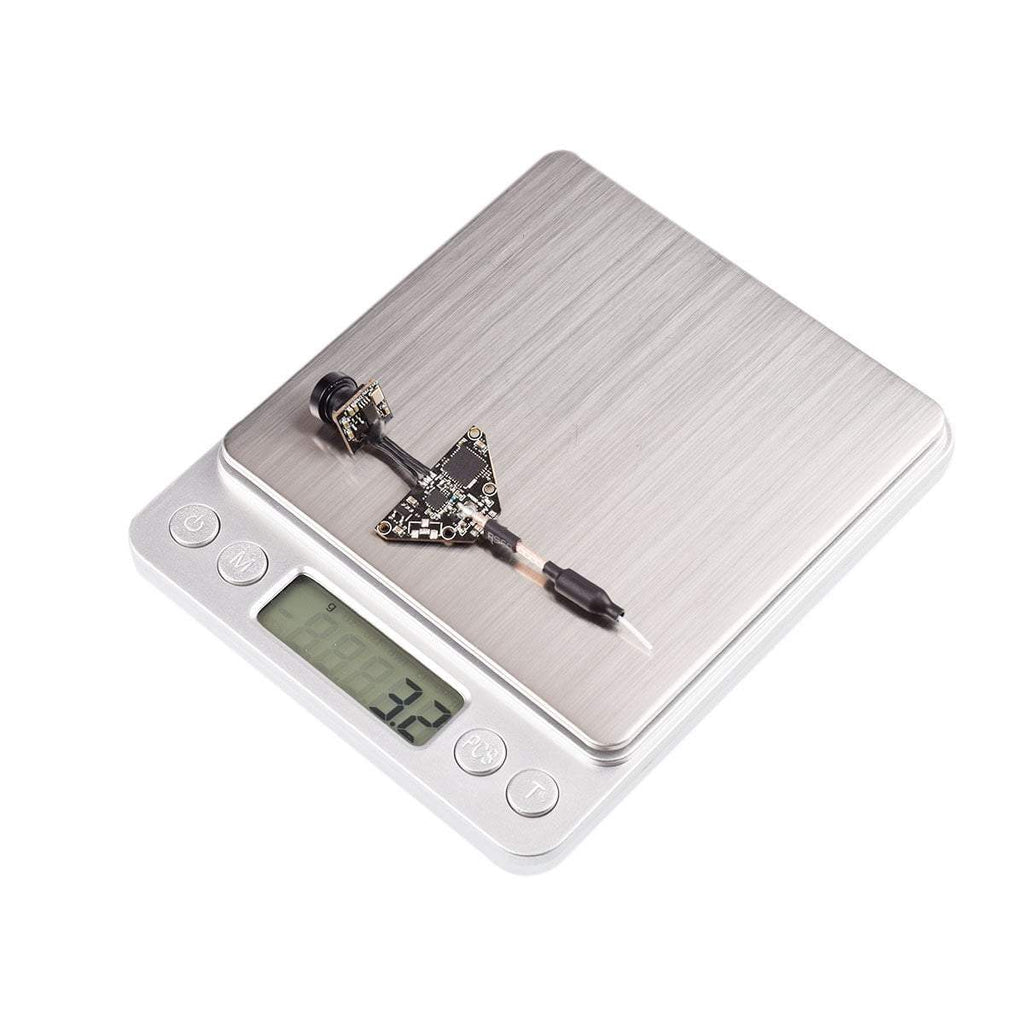

      • Weight: 3.2g
      • Antenna: RG178 Dipole Whip Antenna
      • Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362~5945MHz

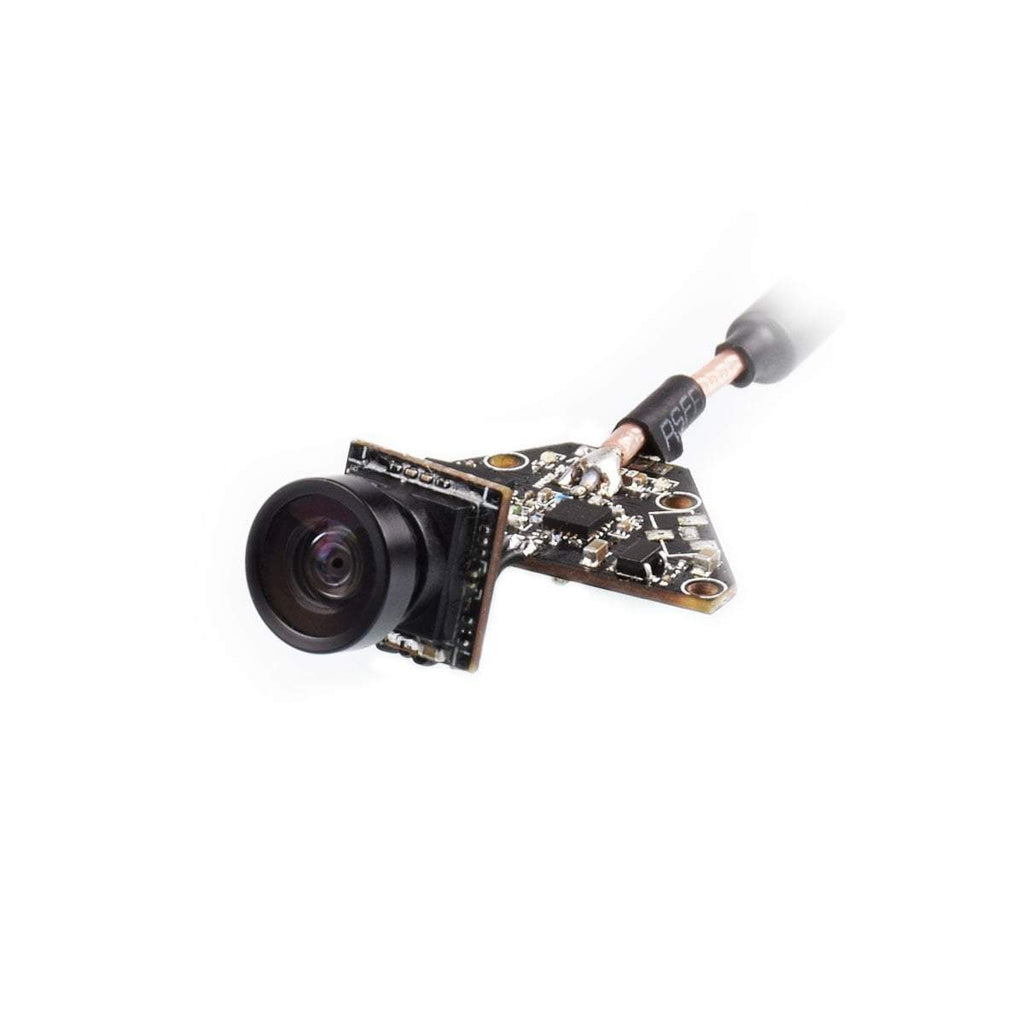

      A01 AIO Camera 5.8G VTX

        Camera Mount Different Choice for Flying Experience

        Two types of Camera tilts Mount at your disposal. 35° mount suitable for high-speed flight, while 25° mount for lower speed flight.

        Component Layout Diagram for A01 VTX

        The following diagram describes the organization and wiring of the physical components on A01 VTX board.

        How to Connect with FC

        A01 AIO VTX comes with port, convenient for installation

          PACKAGE

          • 1 * BETAFPV A01 AIO FPV Camera VTX
          • 1 * 5-Pin FC Pluggable Cable
          • 1 * Camera Mount (25 degrees)
          • 1 * Camera Mount  (35 degrees)
