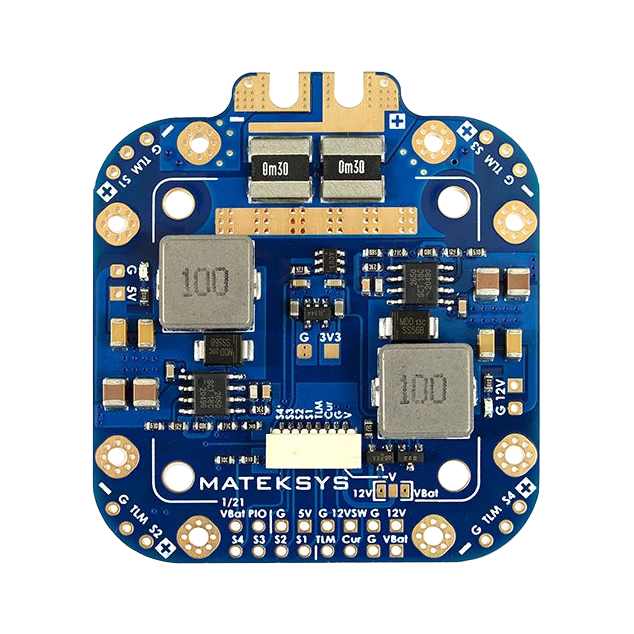

Matek XCLASS PDB 8-60v FCHUB-12S

$37.95 (inc. GST)

In StockIn StockOut of stock

CURRENTLY IN STOCK

Out of stock

Order in H, M, Seconds (before 1pm AEST) for same day despatch
Add to Wishlist
SKU: 8591N/ACategories: Drone Electronics , Matek , Power Distribution Boards , Tags: Matek

Are you wanting to buy the Matek XCLASS PDB 8-60v FCHUB-12S in Australia?

The Matek XCLASS PDB 8-60v FCHUB-12S was designed to connect all your drone electronics together with maximum efficiency.
This PDB distributes power from a 2~6S LiPo pack to 4 ESCs, as well as providing regulated & filtered BEC 5V/6A outputs for powering Cameras, RC receiver, Flight Controllers, LEDs, etc.
This board is one of the leaders of the market where durability is concerned.
View there quick start PDF guide here

Specifications

PDB

  • Input voltage range: 8~60V (3~12S LiPo)
  • 4x70A cont, 4x110A burst
  • 4x ESC power /signal/ telemetry pads
  • Current Senor: 440A,  3.3V ADC,  Scale 75
  • 2x LED indicators for 5V, 12V

FFC connection

  • Compatible with MATEKSYS FC F405-STD, F722-STD
  • VTX: Video Transmitter signal
  • T5 & R5: TX5 and RX5 of F405-STD/F722-STD

BEC 5V output (5V pad)

  • Voltage: 5.0 +/- 0.1VDC
  • Continuous current 5 Amps,  Max.6A
  • Short-circuit tolerant (2 seconds)
  • Overcurrent protection & self-recovery

BEC 12V output (12V pad)

  • Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V)
  • Continuous current 4 Amps,  Max.5A
  • Input voltage<12V,  Output voltage = Input voltage
  • Probably there is audible sound in the BEC12V inductor when Input voltage<12V
  • Short-circuit tolerant (2 seconds)
  • Overcurrent protection & self-recovery

Switchable 12V output (SW12V pad)

  • 12V ON/OFF can be switched via PINIO
  • can be use for powering VTX,LED etc.

BEC 3.3V output

  • Linear Regulator
  • Continuous current: 500mA

Physical

  • Mounting: 30.5 x 30.5mm, Φ3mm
  • Dimensions: 55 x 50 x 6 mm
  • Weight: 21g

Includes

  • x1 Matek XCLASS PDB & FCHUB
