Noctua NF-A4x10-5V Quiet Cooling 40x40x10mm 5V Fan Kit

$39.95 AUD

CURRENTLY IN STOCK

Add to Wishlist
SKU: 26094N/A W/H: N/A Barcode: N/A Shipping Weight: 0g N/A Categories: 3D Printer Parts , Noctua Tags: 3D Printing, DC Fan, noctua

We accept the following payment methods

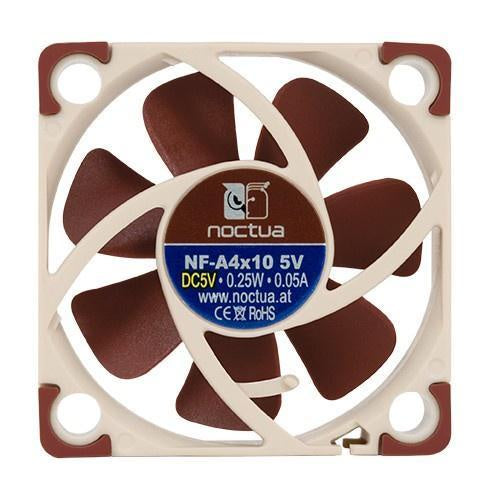

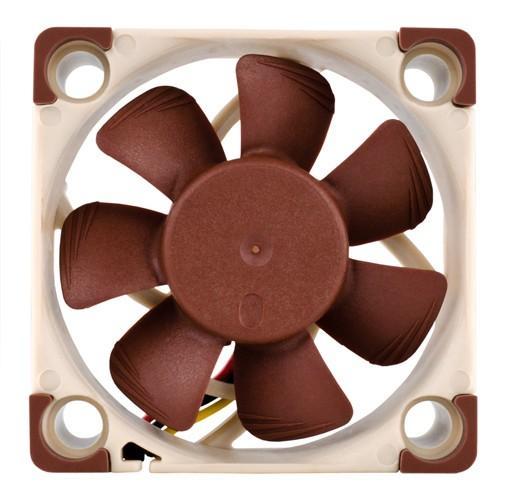

Noctua NF-A4x10 5V 40mm Fan

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and an AAO standard frame, the NF-A4x10 5V is a dedicated 5V version of Noctua’s highly optimised, premium quality quiet 40x10mm fan. Smooth Commutation Drive technology and Noctua’s reference class SSO2 guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, the OmniJoin™ Adaptor Set and 6 years manufacturer’s warranty, the NF-A4x10 5V is a premium choice for demanding 5V applications.

Being a 5V fan, the NF-A4x10 5V be run at 12V and will be damaged when used with typical 12V power sources such as PC mainboard fan headers./em>



Noctua NF-A4x10 5V Features

Noctua NF-A4x10 5V
Image shows 5V version logo. 5V version
Many devices such as network or storage solutions use 5 40mm fans. With the same operating voltage and the included OmniJoin™ adaptor set that makes it compatible with proprietary fan headers, the NF-A4x10 5V is ideal for replacing noisy or broken 5V 40mm fans.
Image shows Flow Acceleration Channels logo. Flow Acceleration Channels
The NF-A4x10 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
Image shows  Reduced Motor Hub Size logo. Reduced Motor Hub Size
Thanks to its streamlined, compact motor design, the NF-A4x10's motor hub is smaller than with conventional 4cm fans. This allows for more blade surface area and thus contributes to the NF-A4x10's superior airflow and pressure performance.
Image shows AAO Frame logo
. AAO Frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Image shows Stepped Inlet Design logo
.

Stepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments.

Image shows Inner Surface Microstructures logo.

Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.

Image shows Integrated Anti-Vibration Pads logo.

Integrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimize the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.

Image shows Smooth Commutation Drive 2 logo.

Smooth Commutation Drive 2
The latest version of Noctua’s advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-A4x10 remarkably quiet even at close distance.

Image shows SSO2 Bearing logo.

SSO2 Bearing
The NF-A4x10 features the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

Image shows 3 to 2-pin Adaptor logo. 3 to 2-pin Adaptor and Polarity Protection
The NF-A4x10 comes with an adaptor from 3-pin Molex to the 2-pin connectors used on many graphics cards or network and storage devices. An integrated diode provides polarity protection on 2-pin connections.
Image shows OmniJoin Adaptor Set logo. OmniJoin Adaptor Set
Many devices featuring 40mm fans use proprietary fan headers, so the NF-A4x10 comes with Noctua's OmniJoin Adaptor Set. Just cut the original fan's cable, fix it to the adaptor using the supplied 3M Scotchlok™ connectors and you can plug the NF-A4x10 to proprietary fan headers!
Image shows Extensive Cabling Options logo.

Extensive Cabling Options
The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.

Image shows 6 years manufacturer’s warranty logo.

6 Years Manufacturer's Warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A4x10 features an MTBF of more than 150.000 hours rating and comes with a full 6 years manufacturer's warranty.



Noctua NF-A4x10 5V Specifications

Noctua NF-A4x10 5V
Size 40x40x10 mm
Connector 3-pin
Bearing SSO2
Blade Geometry A-Series with Flow Acceleration Channels
Frame Technology AAO (Advanced Acoustic Optimization)
Rotational Speed (+/- 10%) 4500 RPM
Airflow 8.2 m³/h - 4.83
Acoustical Noise 17.9 dB(A)
Acoustical Noise with L.N.A. 12.9 dB(A)
Static Pressure 1.78 mm H2O
Max. Input Power 0.25 W
Max. Input Current 0.05 A
Voltage 5V
MTBF > 150,000 h

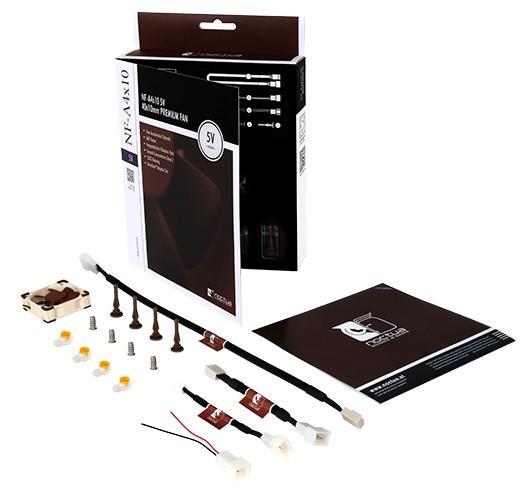

Scope of Delivery
  • 3:2-Pin Adaptor
  • OmniJoin Adapter Set
  • 30cm Extension Cable
  • 4 Vibration-Compensators
  • 4 Fan Screws
Warranty 6 years

Looking for a replacement for your Prusa MK3S?



Prusa switches between two different 5v fans on their Prusa MK3S Kits.

Type B Delta Fan
Type A Noctua Fan NF-A4x10-5V
We also sell the Noctua fan in the Noctua NF-A4x10-5V Kit (this listing) direct from Noctua if these are both out of stock however you will need to solder the wires as it does not come with correct length wire/connector.
